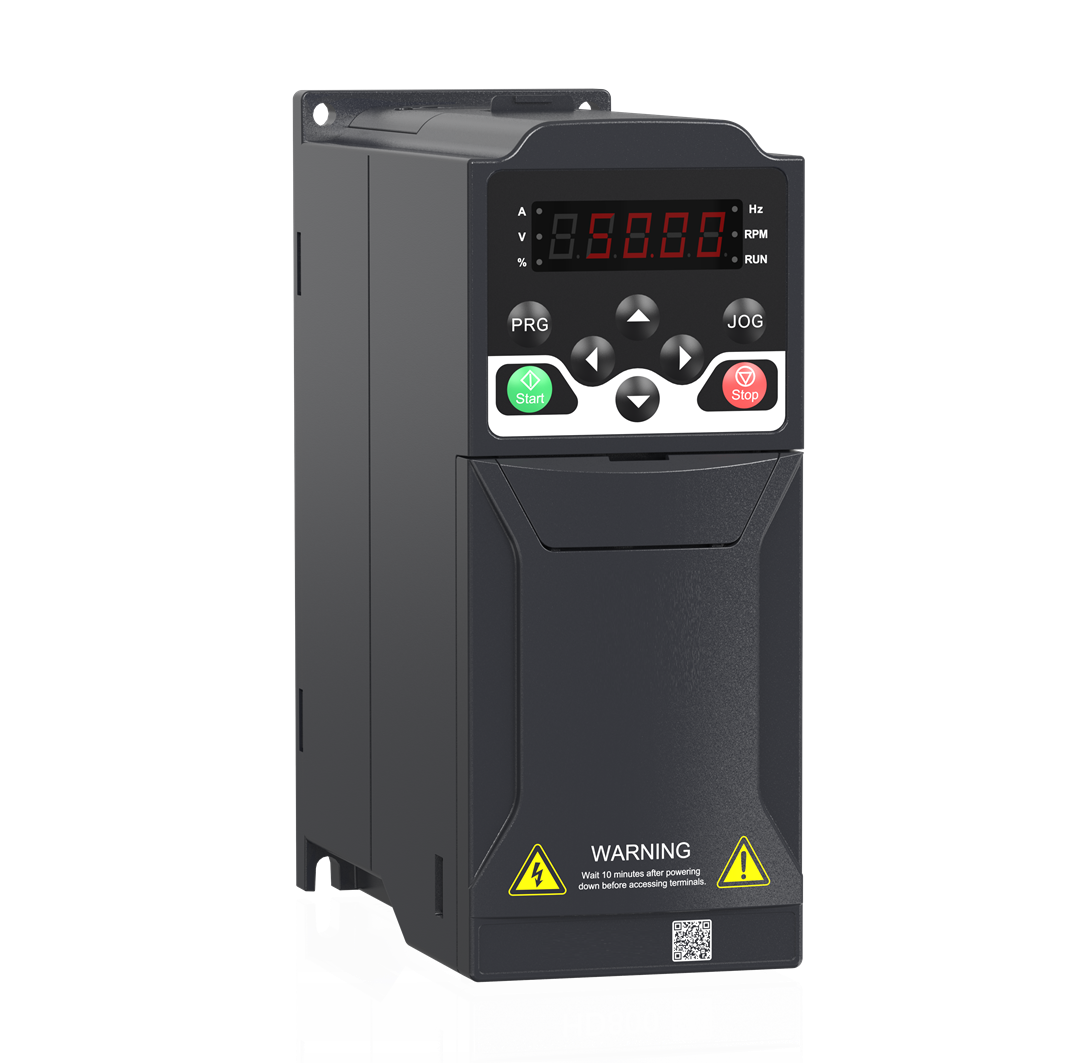

Kinetec Hd8000 Series Vector Control Inverter

Book-type design
greatly saving 30% mounting space

More intelligent
support CANopen/PROFIBUS-DP/PROFINET /Modbus/EtherCAT/4G/Wi-Fi

Compared to Industrial Frequency Operation HD8000 is a voltage-type type inverter, and its output is PWM wave with certain harmonic wave. Therefore, the temperature rise, noise, and vibration of the motor during use have slightly increased compared to power frequency operation. Constant Torque Low Speed Operation When inverter drives an ordinary motor to run at a low speed for a long time, the output torque will be reduced due to the poor heat dissipation of the motor. If the motor is in a long-term low-speed constant torque running condition, it is recommended to use a inverter motor. Electronic Thermal Protection for Motor When selecting an adaptive motor, the inverter can effectively implement thermal protection for the motor. If the power of the controlled motor does not match that of the inverter, the motor protection parameters or other protection measures must be adjusted to ensure safe and reliable operation of the motor. Above the Rated Frequency of the Motor If the motor is operated at a frequency exceeding its rated frequency, the noise increases. Pay attention to the vibration of the motor and ensure that the motor bearings and mechanical devices can meet the requirements of the running speed range. Lubrication of Mechanical Device At long time low-speed running, provide periodical lubrication maintenance for the mechanical devices such as gear box and geared motor etc. to make sure the drive results meet the site need. Mechanical Resonance Point Set the inverter's jump frequency to avoid the mechanical resonance point of the load device or motor. Check the Insulation of the Motor For the first time using the motor or after long time storage, it needs check the insulation of the motor. Worse insulation can cause damage to HD8000 .
